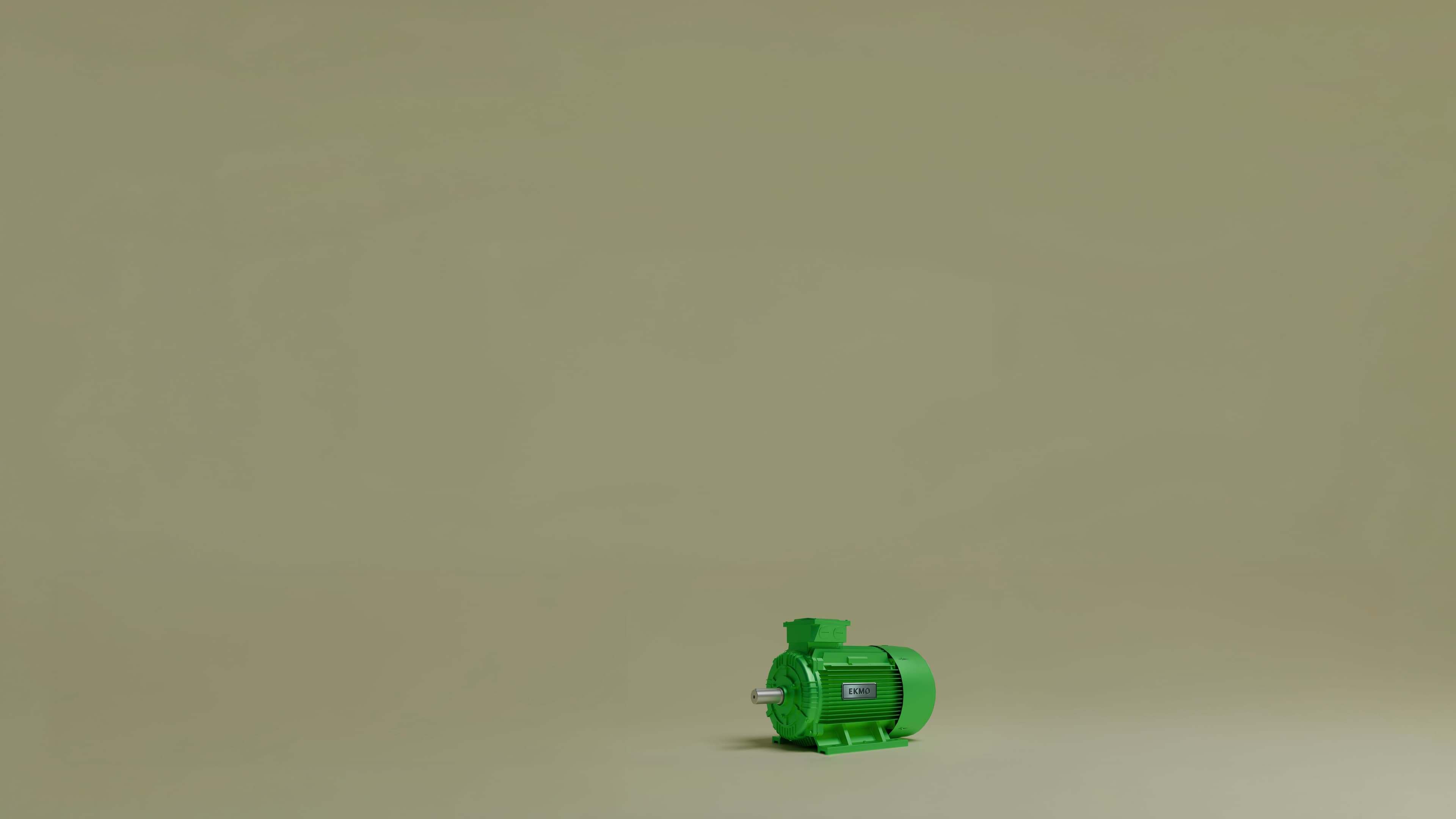

IE5+ Electric Motors Without Rare-Earth Magnets

Ferrite permanent magnet motors delivering IE5+ efficiency. No neodymium. No supply chain exposure.

Ferrite vs Neodymium Permanent Magnet Motors

A side-by-side comparison of material properties, performance, and long-term reliability.

Category	Ferrite PM (EKMO)	Neodymium PM
Supply	Abundant global	Limited — China ~90%
Geopolitical risk	None	High
Material cost	Low	High + volatile
IE class	IE5+	IE5+
Thermal	Stable	Heat sensitive
Environmental	Low impact	Mining impact

Specifications

Power range:

37 kW – 1 MW

Shaft height:

225, 250, 280, 315, 355 mm

Rated speed:

100–4500 RPM

Housing:

IEC

Cooling:

IC411 (self-ventilation)

Efficiency:

IE5 minimum

Magnets:

Ferrite only — no rare earths

40+ Years Experience

Deep expertise in ferrite and motor technology

EU Funded

Backed by European structural funds

No Rare Earths

Ferrite only, zero rare earth dependency

Applications

Industrial

HVAC, extruders, mixers

Marine / Yachts

Marine propulsion systems

Electric buses

Electric public transport

Industrial fans

Large-scale ventilation

We develop the technology — motor manufacturers license it.

EKMO does not sell motors directly. The IE5+ ferrite design is available to license.

Learn about licensing

Questions?

Is there a performance trade-off vs neodymium?

No. IE5+ efficiency is achieved through advanced electromagnetic design that compensates for ferrite's lower energy density — no performance trade-off at the system level.

Can I buy one?

Not yet — the motor is in development. If you manufacture motors the IE5+ ferrite design is available to license. Contact us to discuss.

What is the supply chain advantage over neodymium?

Ferrite magnets are produced globally with no geopolitical concentration risk. Neodymium supply is ~90% controlled by China subject to export restrictions and price volatility. Ferrite eliminates that exposure entirely.

Interested in learning more?

Get in touch with our team for specifications and licensing information.
